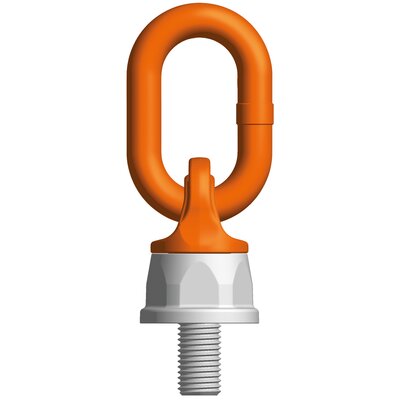

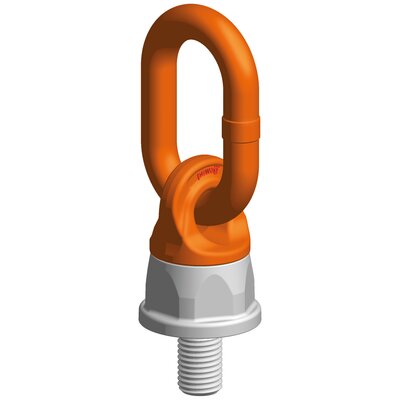

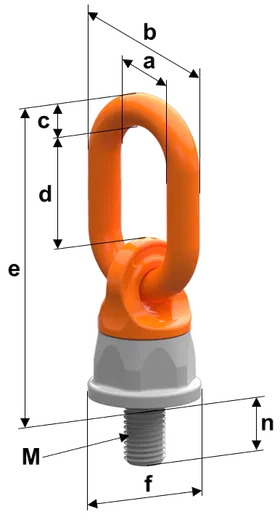

Lifting Eye Pewag PLDW

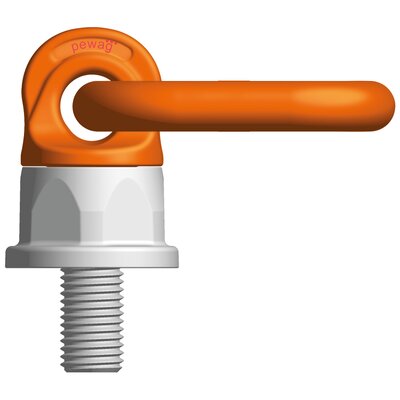

Ball-bearing 360° under load rotatable lifting point. High resistant lifting eye 180° movable. The special screws are 100% crack-tested as well as protected against corrosion. The table with the load capacities depending on the method of lifting as lifting gear, number of legs and angle of inclina

Show more

Product number:

Ball-bearing 360° under load rotatable lifting point. High resistant lifting eye 180° movable. The special screws are 100% crack-tested as well as protected against corrosion. The table with the load capacities depending on the method of lifting as lifting gear, number of legs and angle of inclination is a part of the user manual and packed together with each lifting point.

Permissible usage

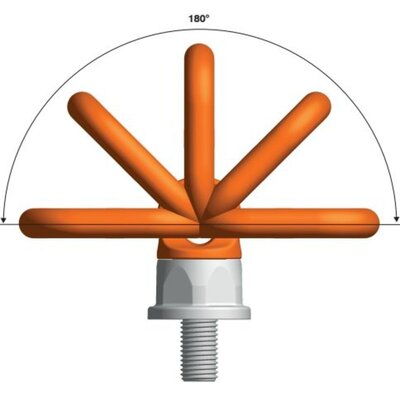

Load capacity acc. to the inspection certificate respectively table of WLL in the mentioned directions of pull (see picture 1).

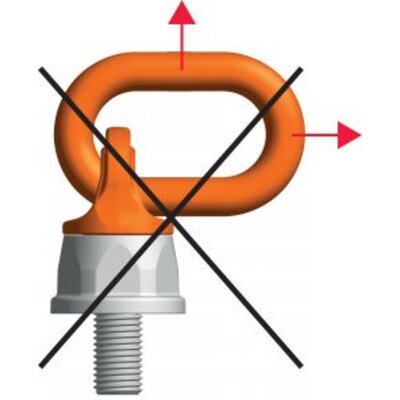

Non permissible usage
Make sure when choosing the assembly that improper load can not arise e.g. if:

  • The direction of pull is obstructed
  • Direction of pull is not in the foreseen area (see picture 2)
  • Loading ring rests against edges or load

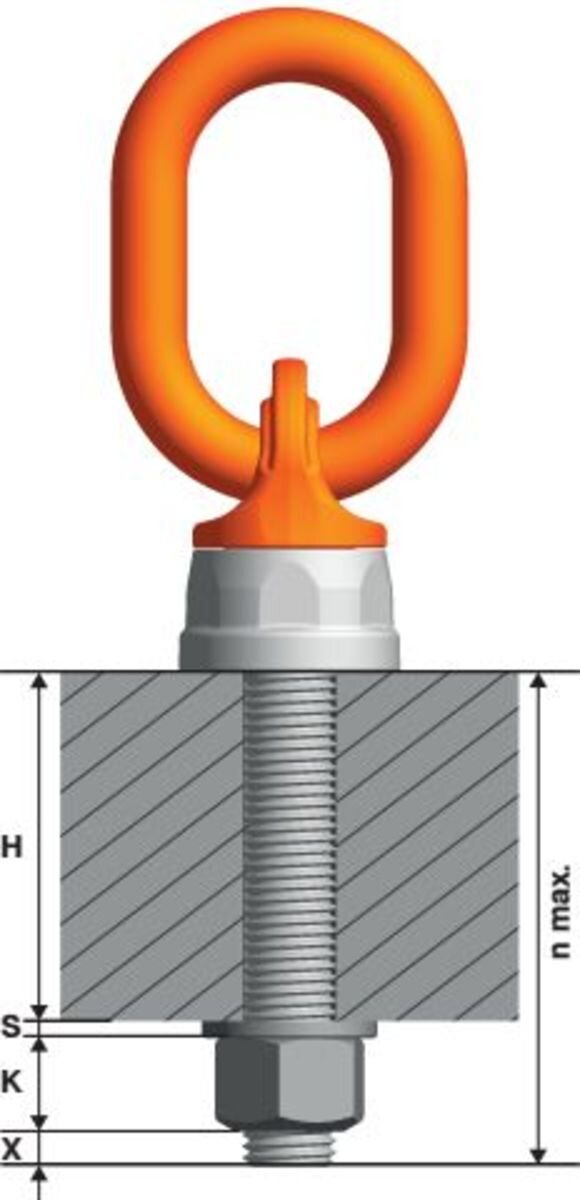

To calculate the necessary thread length (L):
L = H + S + K + X

H = Material height
S = Thickness of the washer
K = Height of the nut (depending on the thread size of the screw)
X = Excess length of the screw (twofold pitch of the screw)
L max. = n max.

  • Material: Alloy steel
  • Marking: According to standard, CE-marked, WLL, thread size and an individual serial number.
  • Standard: EN 1677-1
    except grade/WLL
  • Note: Also available in special length (SL) and maximum lenght (MAXL) as well.
  • Safety factor: 4:1

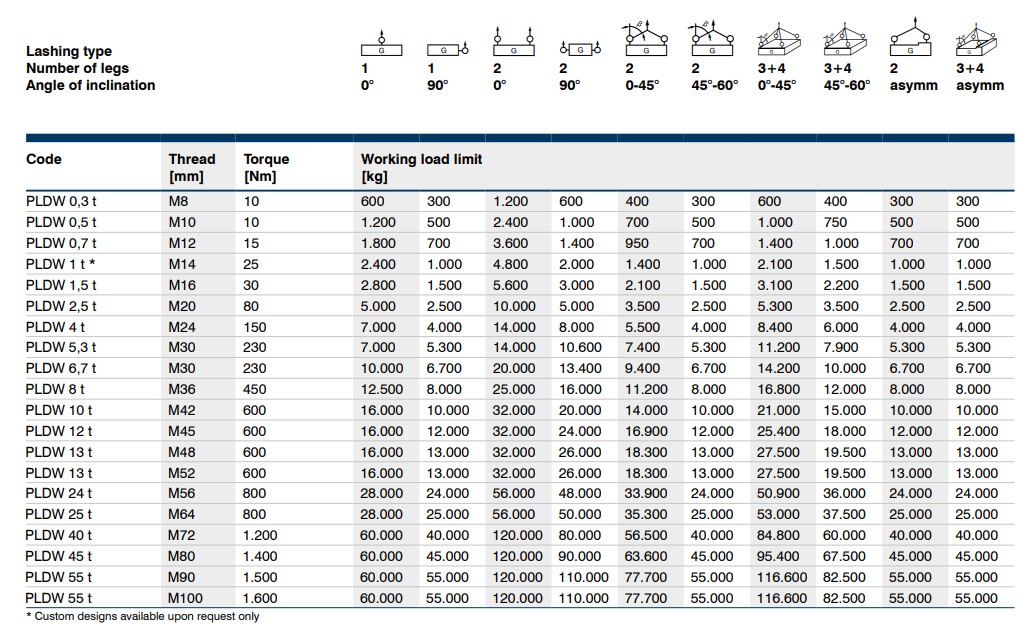

Method of lifting



drawing load capacities table 1

drawing load capacities table 2

drawing load capacities table 3

drawing load capacities table 4

drawing load capacities table 5

drawing load capacities table 6

drawing load capacities table 7

drawing load capacities table 8

drawing load capacities table 9


drawing load capacities table 10

Wrench

Number of legs


1
1
2
2
2
2
3+4
3+4
2
3+4

Angle of inclination


90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
asymm.
asymm.

Code
Thread
Fastening torque
Load capacity












mm
Nm
tons










PLDW M8
M8
10
0,6
0,3
1,2
0,6
0,4
0,3
0,6
0,4
0,3
0,3
34
PLDW M10
M10
10
1
0,5
2
1
0,7
0,5
1
0,75
0,5
0,5
34
PLDW M12
M12
15
1,4
0,7
2,8
1,4
0,95
0,7
1,4
1
0,7
0,7
34
PLDW M14
M14
25
2
1
4
2
1,4
1
2,1
1,5
1
1
34
PLDW M16
M16
30
2,8
1,5
5,6
3
2,1
1,5
3,1
2,1
1,5
1,5
34
PLDW M20
M20
80
5
2,5
10
5
3,5
2,5
5,3
3,5
2,5
2,5
46
PLDW M24
M24
150
7
4
14
8
5,5
4
8,4
6
4
4
50
PLDW M30
M30
230
10
6,7
20
13.4
9,4
6,7
14,2 10
6,7
6,7
60
PLDW M36
M36
450
12,5
8
25
16
11,2
8
16,8
12
8
8
75
PLDW M42
M42
600
16
10
32
20
14
10
21
15
10
10
75
PLDW M45
M45
600
16
12
32
24
