Wirerope HD9K

  • Attribute icon
  • Attribute icon
  • Attribute icon
  • Attribute icon

Typical applications: When an extremely high MBL is required for a multipart reeving hoist system: boom hoist, trolley for container cranes, luffing for mobile and crawler cranes and big height overhead cranes and electric hoists with a minimum of 2 or 3 falls.

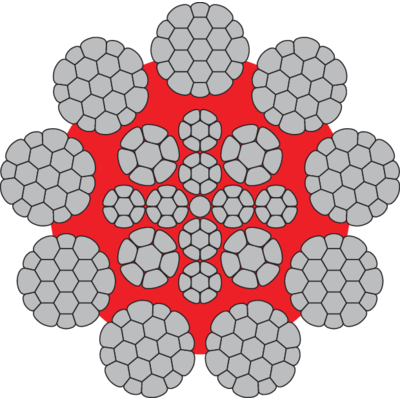

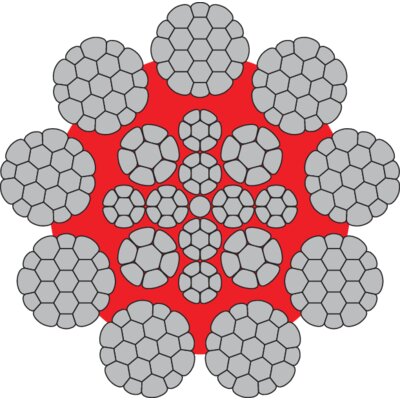

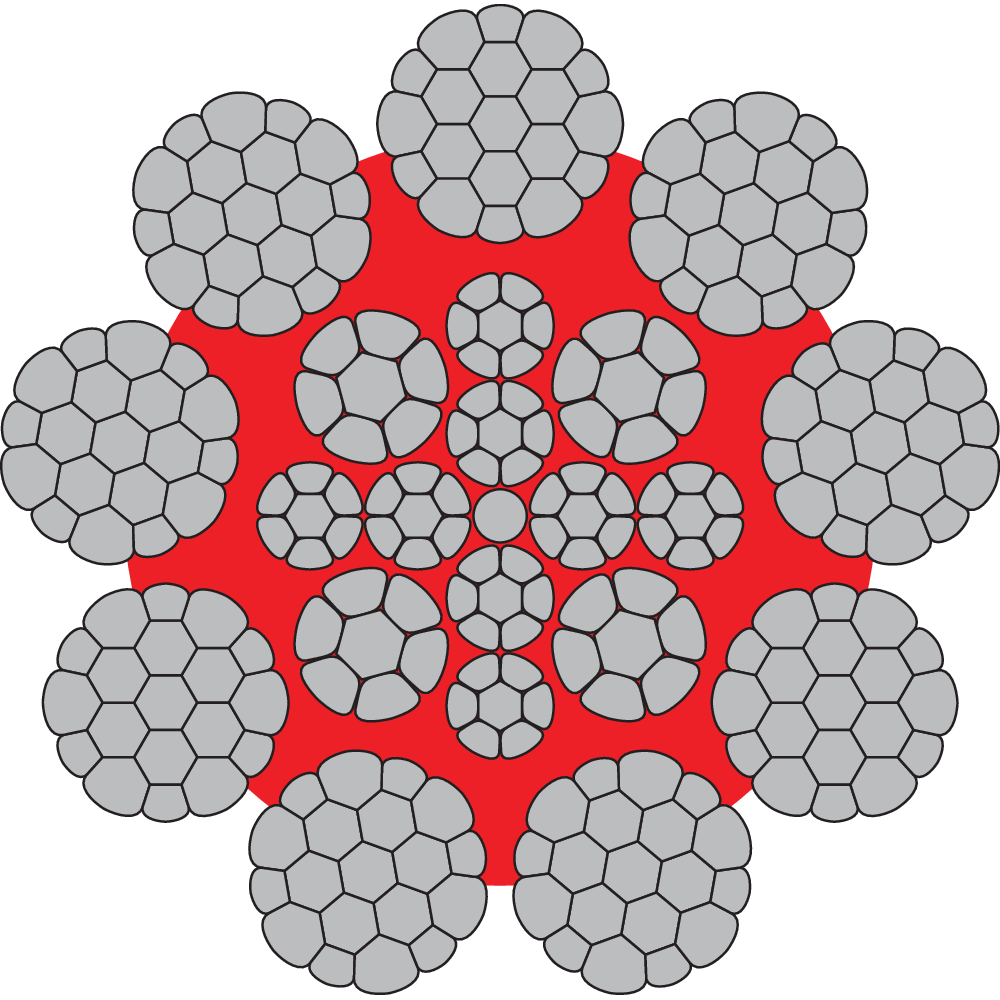

Is available also with platic core (PI). A plastic layer between the steel core and the outer strands, gives the rope a high structural stability, avoiding internal rope destruction and protecting the core against corrosive environment. Recommended for all marine and offshore applications and other severe working environmental conditions.

Standard: EN 12385-4
ISO 4309 Rope Category No: 9x16 RCN.06, 9x19 RCN.07, 9x26 RCN.10

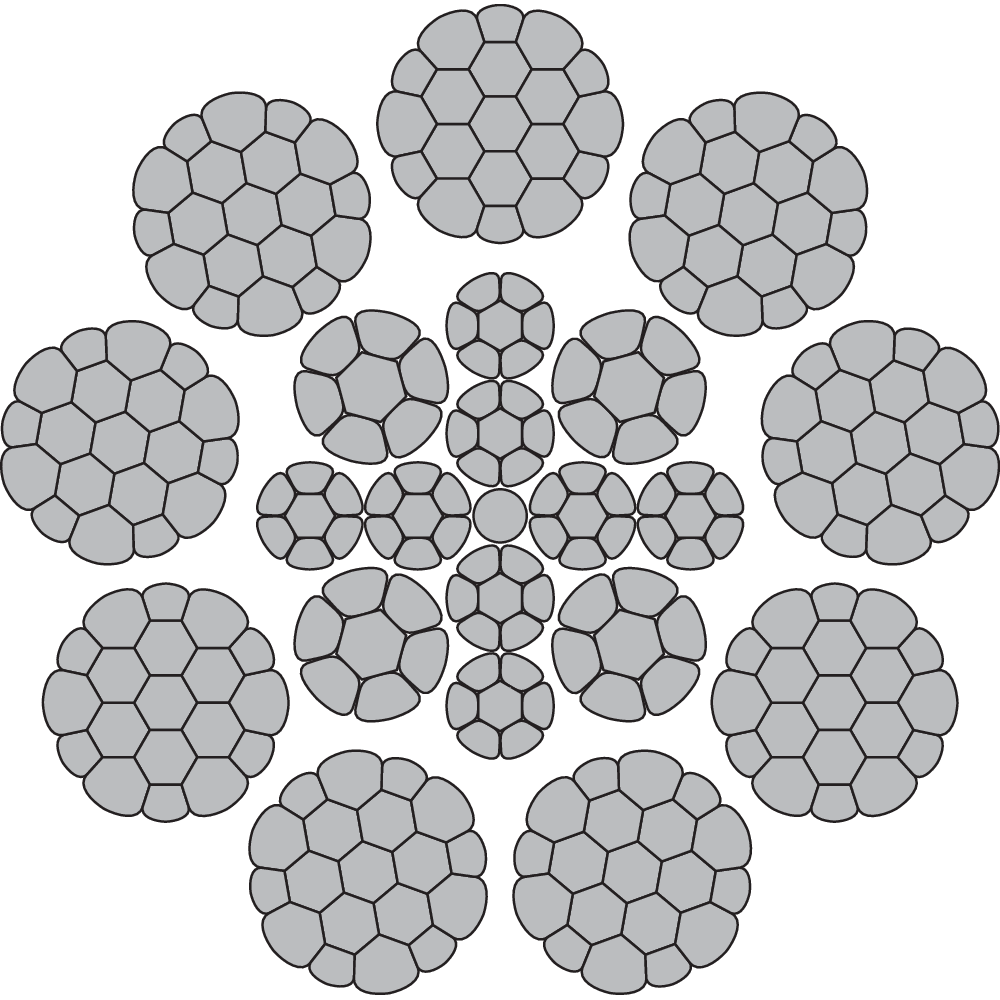

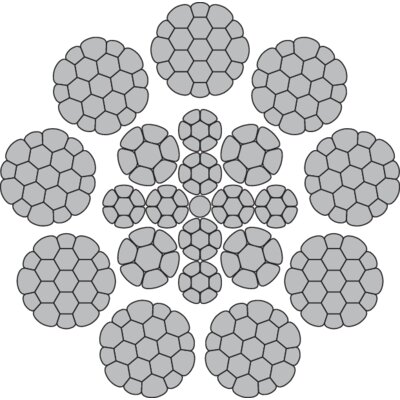

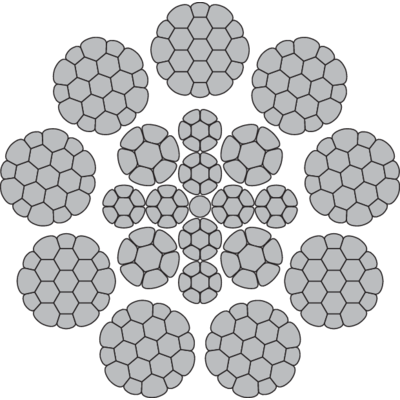

  • Rope construction: 9 outer compacted strands closed in the opposite lay off the inner core strands leading the HD9K to have a low torque for a better stability of the sheave blocks.
  • Fill factor: 0.7
  • RCN: 06
