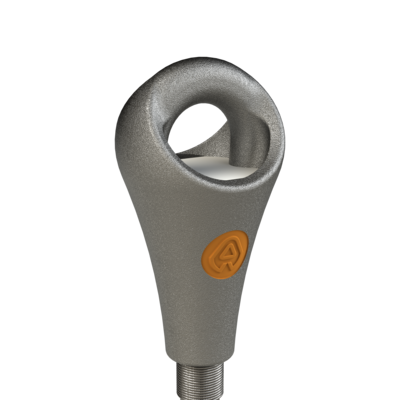

Rope Pear Socket Nemag

The Nemag Rope Pear Socket is designed to, in combination with the Nemag Quick Release Link, smoothly pass over cabel sheaves. The life span of the Nemag Rope Pear Socket generally surpasses that of the steel wire rope. The Rope Pear socket can be fitted by casting with a 2-component casting mass wi

Show more

Product number:

The Nemag Rope Pear Socket is designed to, in combination with the Nemag Quick Release Link, smoothly pass over cabel sheaves. The life span of the Nemag Rope Pear Socket generally surpasses that of the steel wire rope. The Rope Pear socket can be fitted by casting with a 2-component casting mass without the need for outside assistance, and ensures a strong connection. Nemag Rope Pear Sockets are suited to any type of steel wire rope.

  • Material: High grade casted steel.
  • Marking: Manufacturers logo, size and batch number.
  • Warning: The specified capacities shown are for grab operation. For other applications use safety factor 5:1
  • Safety factor: 5:1

Combination of the Nemag Rope Pear Socket with Nemag Quick Release Link

A Rope Pear Socket can be fitted to a Quick Release Link of the same size, or to a link with a different size as indicated in table

Pear code: Link code:

RP-2
RP-3 RL-4
RP-4 RL-4 / RL-5
RP-5 RL-4 / RL-5 / RL-6
RP-6 RL-5 / RL-6 / RL-7
RP-7 RL-6 / RL-7 / RL-8 / RL-9
RP-8 RL-7 / RL-8 / RL-9
RP-9 RL-8 / RL-9 / RL-10
RP-10 RL-9 / RL-10 / RL-11
RP-11 RL-10 / RL-11 / RL-12
RP-12 RL-11 / RL-12 / RL-13
RP13 RL-12 / RL-13 / RL-14
RP-14 RL-13 / RL-14 / RL-15
RP-15 RL-14 / RL-15
RP-17 RL-17
