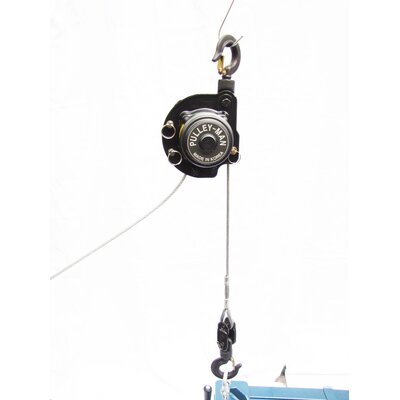

Winch Pulley-Man CSW-3060

General: Lifting or hauling winch. Capacity: 300 kg single line or 600 kg double line. Easy installation and dismantling, compact and light weight at 3.5kg. 12 m supplied working length - this can be increase considerably.


Powered by reverable hand drill or screwdriver. Horizontal/Vertical/Slan

Show more

Product number:

General: Lifting or hauling winch. Capacity: 300 kg single line or 600 kg double line. Easy installation and dismantling, compact and light weight at 3.5kg. 12 m supplied working length - this can be increase considerably.


Powered by reverable hand drill or screwdriver. Horizontal/Vertical/Slant working conditions by fixed mainbody or fixed wire hook method. Trouble-free automatic holding - brake function (patented gear-reducer). Can do many jobs in any 360 rotating direction. Supplied with 12 m of galvanized steel rope 4.76. Self-locking gear

Optional pulley to double capacity. Ask more about our sales.




Angle
Number of falls

Pulling capacity kg

single line
double line

1500
300

12°
975
1950

16°
825
1650

27°
585
1170

35°
450
900
