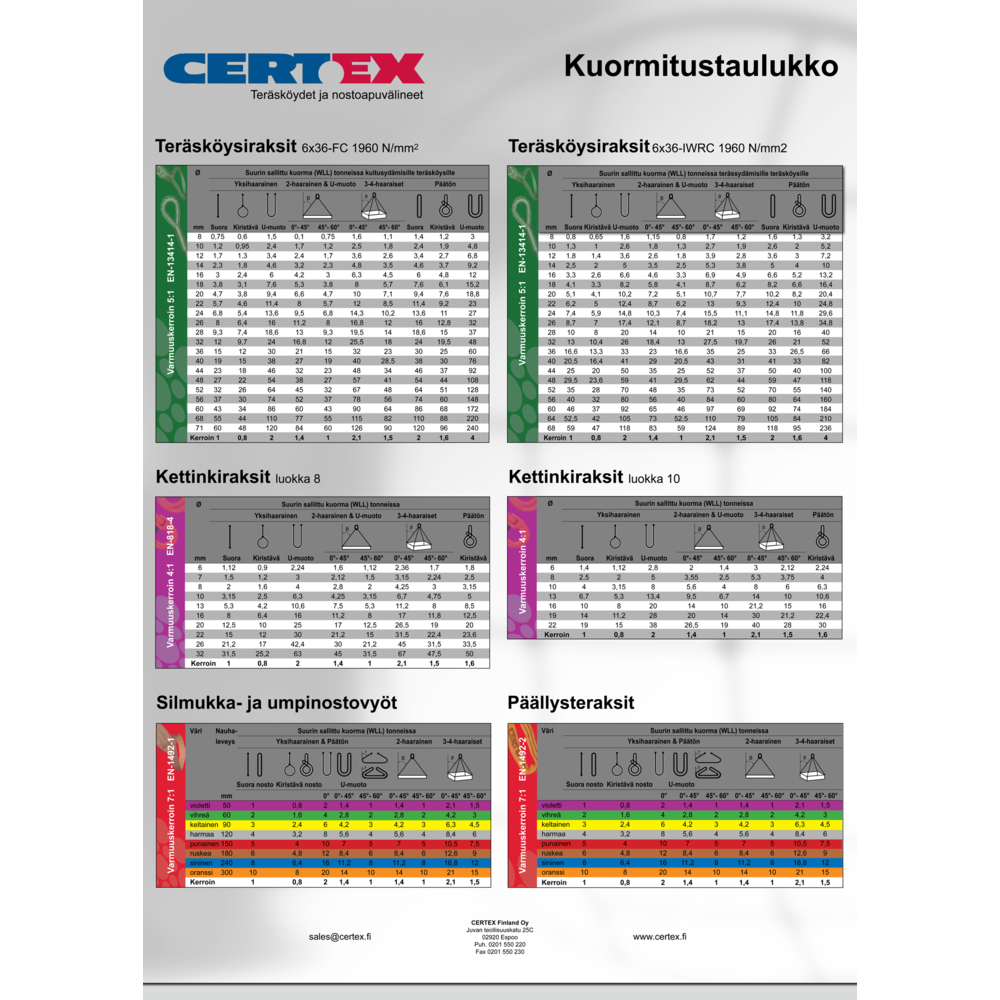

Kuormitustaulukko luokka 10
Kettinki
|
WLL t
|
||||||||||||||
Ø
|
Yksihaarainen
|
2-haarainen & U-nosto
|
3-4-haaraiset
|
Päätön
|
|||||||||||
|
|
|
|
|
|
|
|
||||||||
mm |
Suora |
Kiristävä |
U-nosto
|
0°-45°
|
45°-60°
|
0°-45°
|
45°-60°
|
Kiristävä |
|||||||
6
|
1,4
|
1,12
|
2,8
|
2
|
1,4
|
3
|
2,12
|
2,24
|
|||||||
8
|
2,5
|
2
|
5
|
3,55
|
2,5
|
5,3
|
3,75
|
4,0
|
|||||||
10
|
4
|
3,15
|
8
|
5,6
|
4
|
8
|
6
|
6,3
|
|||||||
13
|
6,7
|
5,3
|
13,4
|
9,5
|
6,7
|
14
|
10
|
10,6
|
|||||||
16
|
10
|
8
|
20
|
14
|
10
|
21,2
|
15
|
16
|
|||||||
19
|
14
|
11,2
|
28
|
20
|
14
|
30
|
21,2
|
22,4
|
|||||||
22
|
19
|
15
|
38
|
26,5
|
19
|
40
|
28
|
30
|
|||||||
26
|
26,5
|
21,2
|
53
|
37,5
|
26,5
|
56
|
40
|
42,5
|
|||||||
32
|
40
|
31,5
|
80
|
56
|
40
|
85
|
60
|
63
|
|||||||
Kerroin (KL)
|
1
|
0,8
|
2
|
1,4
|
1
|
2,1
|
1,5
|
1,6
|
